Gear type toroidal coil winder

FOB Reference Price:Get Latest Price
US $1-1.01 / Sets | 1 Set/Sets Gear type toroidal coil winder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SANSHINE
Model Number:
SS300-01
Condition:
New
After-sales Service Provided:
No overseas service provided
Wire diameter:
0.7 -2.0mm
Max. final coil O. D.:
60 -200mm
Min. final coil I. D.:
40mm
Max. final coil height:
100mm
how to make big toroid core coil:
use our SS300-01 Gear type toroidal coil winder to make
how to make thick wire toroid coil:
use our SS300-01 Gear type toroidal coil winder to make
how to make big toroid common mode choke:
use our SS300-01 Gear type toroidal coil winder to make
how to make big toroid current sensor:
use our SS300-01 Gear type toroidal coil winder to make
make power factor corrector toroid coil:
use our SS300-01 Gear type toroidal coil winder to make
how to make big power toroid filter:
use our SS300-01 Gear type toroidal coil winder to make
SupplyAbility
SupplyAbility:
8000 Set/Sets per Year Gear type toroidal coil winder
Packaging & Delivery
Packaging Details
customs approved wood box for Gear type toroidal coil winder
Port
XIAMEN port
Lead Time :
Shipped in 5 days after payment
Video Description
Gear type toroidal coil winder
Product Description

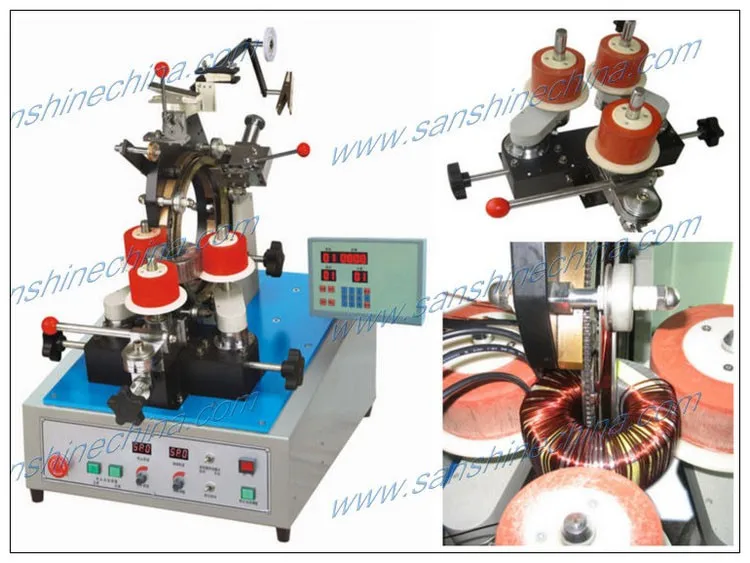

Description of SS300-01 automatic gear type toroidal coil winder:

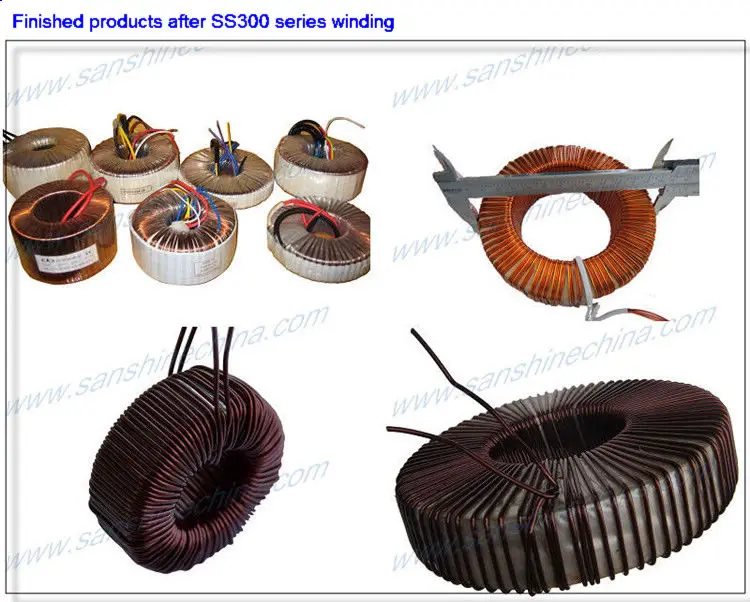

Coil winding example of SS300 series automatic gear type toroidal coil winder:



SS300-01 automatic gear type toroidal coil winder adopt precision digital toroid controller and the gear type winding shuttle, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils,etc.

Features of SS300-01 automatic gear type toroidal coil winder:

1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost. one set standard automatic toroidal coil winding machine include 1PCS winding shuttle only, other size shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for loading and winding.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding by photo-electricity sensor.

6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300 Series gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.

SS300-01 gear type automatic big heavy toroid coil winding machine
Specification of each moedel :

ModelSS-300-01
Wire diameter0.7 -2.0mmMax. winding speed200 rpm
Max. final coil O. D.Φ 60 -200mmWire spacingstepping motor control
Min. final coil I. D.Φ 40mmSupply voltageAC 220V(50Hz)
Max. final coil height100mmMechanical dimensions550*500*780
Controller storage capacity programs29(set)Weight94kg



How to select the best suited automatic toroid coil winding machine for your toroid coil,

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?

2, toroid core inside diameter before winding?

3, toroid core height before winding?

4, how many windings on this core?

5, how many turns of each winding?

6, how about the copper wire diameter of each winding?

7, provide pictures of product which is better.







Our Services



 Service tenet



Provide you the best service with “fast + satisfactory + safe”.



Warranty period



12 months long after the user received the product.



Warranty items



Only for abnormal breakdown caused by the machine design or manufacture defect,



free repair and accessory will be provided.



Technology service ability



All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.



Guide the user to use accurately and how to maintain the product.



Provide free consultation about production process technology of electronic products.



Service after sell



In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.



Use instruction



Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.



Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.



Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should



be taken care. All done help to extend the use period.



User document management



Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.



About product



1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.



2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.



3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.
