Big speaker voice coil winding machine

FOB Reference Price:Get Latest Price
US $1-1.01 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wire size:
0.08~ 1.0mm
Spread pitch:
0~ 9.999mm
Spread width:
100mm (Max. )
Coil diameter:
110mm (Max. )
MAX. speed:
How to make voice coil:
use SANSHINE's SS600 automatic transformer coil winding machine to do
how to make transformer:
use SANSHINE's SS600 automatic transformer coil winding machine to do
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
8000 Set/Sets per Year Big speaker voice coil winding machine
Packaging & Delivery
Packaging Details
customs approved wood box or carton box for Big speaker voice coil winding machine
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 5 To be negotiated
 Big speaker voice coil winding machine
Product Description


Big speaker voice coil winding machine

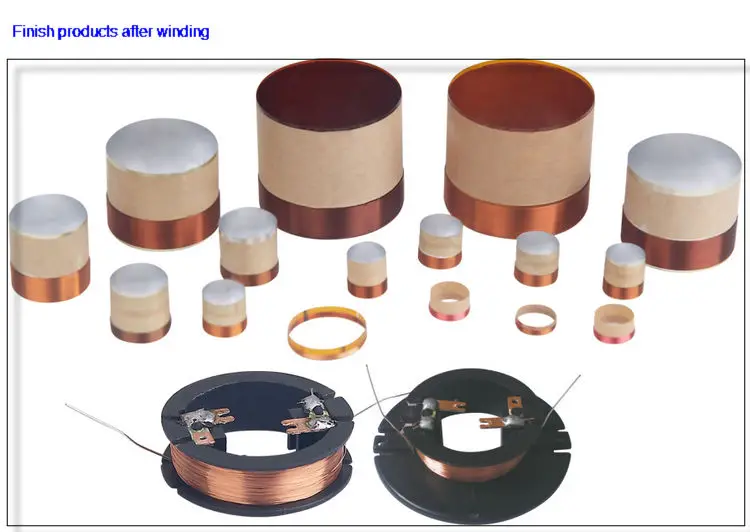

Finished products after winding


Description :
SS600V Big speaker voice coil winding machine.
SS600V SS600V Big speaker voice coil winding machine  is digital programmable coil winding machine, there are insulation tape device (optional)and margin tape device(optional), winding tensioner(optional), alcohol bath, wire spreading head, wire guide shelf with the machine. It's the best choice for winding big speaker voice coil.

Features of SS600V Big speaker voice coil winding machine.  :

1. Alcohol bath wire spreading head for the alcohol self-bonding copper wires.

2. Step motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Foot-switch connection for better efficiency.

6. Winding parameters and options can be set independently for each step.

7. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.


Specification of SS600V Big speaker voice coil winding machine.

Wire size0.08~ 1.0mm
Spread pitch0~ 9.999mm
Spread width100mm (Max. )
Coil diameter110mm (Max. )
Main motorBrushless Motor
Spread motor2-Phase Stepper Motor
MAX. speed6000rpm
Memory999 Steps
Power sourceAC220V/110V ±10%, 50/60 Hz
Net weight(KG)37



Our Services


Service tenet


Provide you the best service with “fast + satisfactory + safe”.


Warranty period


12 months long after the user received the product.


Warranty items


Only for abnormal breakdown caused by the machine design or manufacture defect,


free repair and accessory will be provided.


Technology service ability


All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.


Guide the user to use accurately and how to maintain the product.


Provide free consultation about production process technology of electronic products.


Service after sell


In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.


Use instruction


Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.


Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.


Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should


be taken care. All done help to extend the use period.


User document management


Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.


About product


1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.


2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.


3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.




Packaging & Shipping


Package and transport


General package(Paper carton or plastic bag):  For small goods, Package it with form and pack paper to guarantee unbroken during the transport.


Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)

Big speaker voice coil winding machine
