Two spindles automatic coil winding machine (SS600I )

FOB Reference Price:Get Latest Price
US $1-1.01 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SS600I
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
relay, contactor, etc
Automatic Grade:
Semi-Automatic
Production Capacity:
HIGH SPEED
Memory Capacity:
999
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SANSHINE
Voltage:
220V
Power(W):
110W
Dimension(L*W*H):
76x68x72cm
Weight:
37kg
Certification:
SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Wire diameter:
0.02~ 0.8mm
Spread pitch:
0~ 9.999mm
Spread width(traverse):
100mm (Max. )
Finished coil diameter:
110mm (Max. )
How to wind filter:
use SANSHINE's SS600I Two spindles automatic coil winding machine
How to wind contactor:
use SANSHINE's SS600I Two spindles automatic coil winding machine
Supply Ability
Supply Ability:
8000 Set/Sets per Year Two spindles automatic coil winding machine
Packaging & Delivery
Packaging Details
customs approved wood box or carton box for Two spindles automatic coil winding machine
Port
XIAMEN port
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(day) 5 To be negotiated
Video Description
SS600I Two spindles automatic coil winding machine
Product Description



(SS600I )  Two spindles automatic coil winding machine

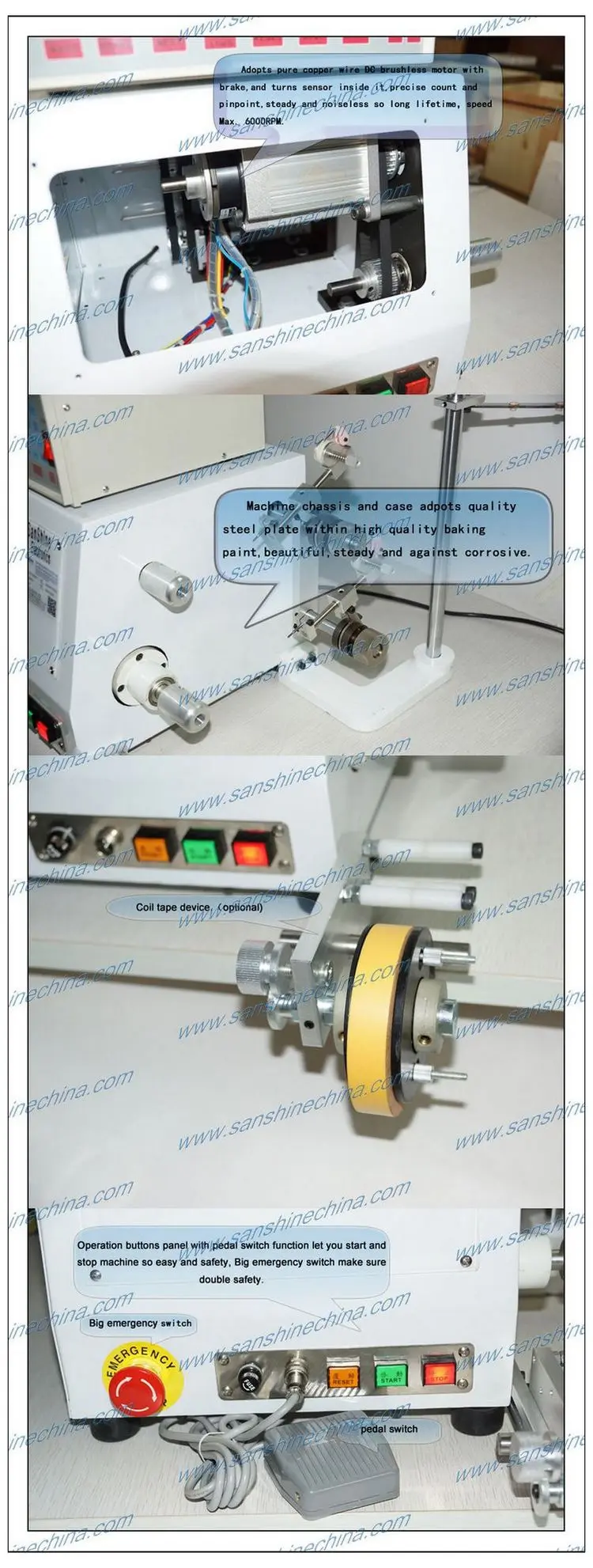

SS600I 1.jpg
SS600I 2.jpg

Finished winding coils

SS600I 3.jpg

Description of SS600I Two spindles automatic coil winding machine :

SS600I Two spindles automatic coil winding machin is digital programmable Coil winding machine, there is insulation tape device and margin Tape device with the machine. It's the best choice for winding transformer, relay, inductor, contactor, voice coil, etc. .  it has 2 winding spindles,best choice for the so small diameter wire of winding processing. its spreading wire head with the winding nozzle, the machine has two wire tensioners on the wire guiding shelft.  Wire tensioner type(type A for 0.02~0.25mm diameter wire, type B for 0.06~0.5mm diameter wire, type C for 0.3~0.8mm diameter wire.).

Features of SS600I SS600I Two spindles automatic coil winding machine :
1. Spreading head of SS-600I with the winding nozzle which used for guiding the small diameter wire to wind.
2. Winding and taping can be done by one machine.
3. Stepper motor driven by constant-current power supply, high Spreading speed precise winding.
4. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.
5. Small wire diameter products of spreading by nozzle type spreading head.
6. Wire passing through ceramic rollers prevent enamel from high temperature.
7. Foot-switch connection for better efficiency.
8. Winding parameters and options can be set independently for each step.
9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.



Specification of SS600I Two spindles automatic coil winding machine

ModelSS-600I
Wire diameter0.02~ 0.8mm
Spread pitch0~ 9.999mm
Spread width(traverse)100mm (Max. )
Finished coil diameter110mm (Max. )
Winding motorBrushless Motor
Spread motor2-Phase Stepper Motor
MAX. speed6000rpm
Memory999 Steps
Power sourceAC220V/110V ±10%, 50/60 Hz
Dimension(cm)76x68x72
Net weight(Kg)37
