Fine wire small toroid coil winding machine 0.05 ~0.3mm winding wire size

FOB Reference Price:Get Latest Price
$1.00 - $1.01 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
After-sales Service Provided:
Video technical support, Online support
1 Year
Universally matched shuttle model:
2.6 3.0 3.5 or customized
Copper wire diameter range:
0.05 ~0.3mm
Min. inside diameter of finished coil:
Out side diameter of finished coil range:
5 ~60mm
Height of finished coil range:
3 ~25mm
Max. Speed:
Memory capacity:
999 steps
Power source:
AC220V /110V +10%, 50/60 Hz
Net weight:
Supply Ability
Supply Ability:
8000 Set/Sets per Year fine wire small toroid coil winding machine
Packaging & Delivery
Packaging Details
customs approved wood box for fine wire small toroid coil winding machine
XIAMEN port or other port
Picture Example:
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Video Description
  SS900S4  fine wire small toroid coil winding machine
Product Description

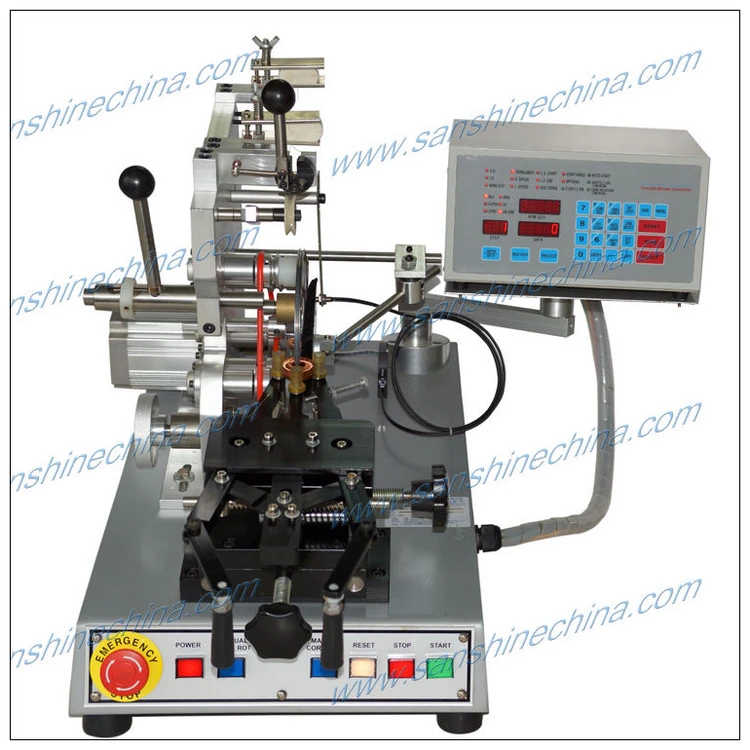

SS900S4  fine wire small toroid coil winding machine

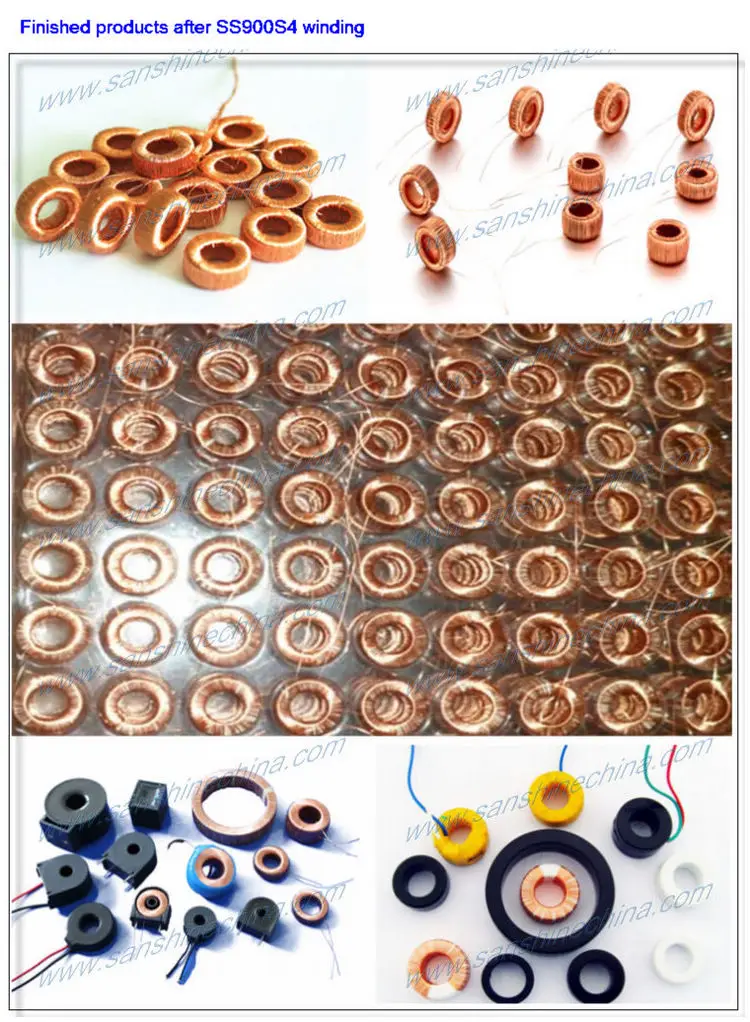

Coil winding example of SS900S4 automatic toroid coil winding machine

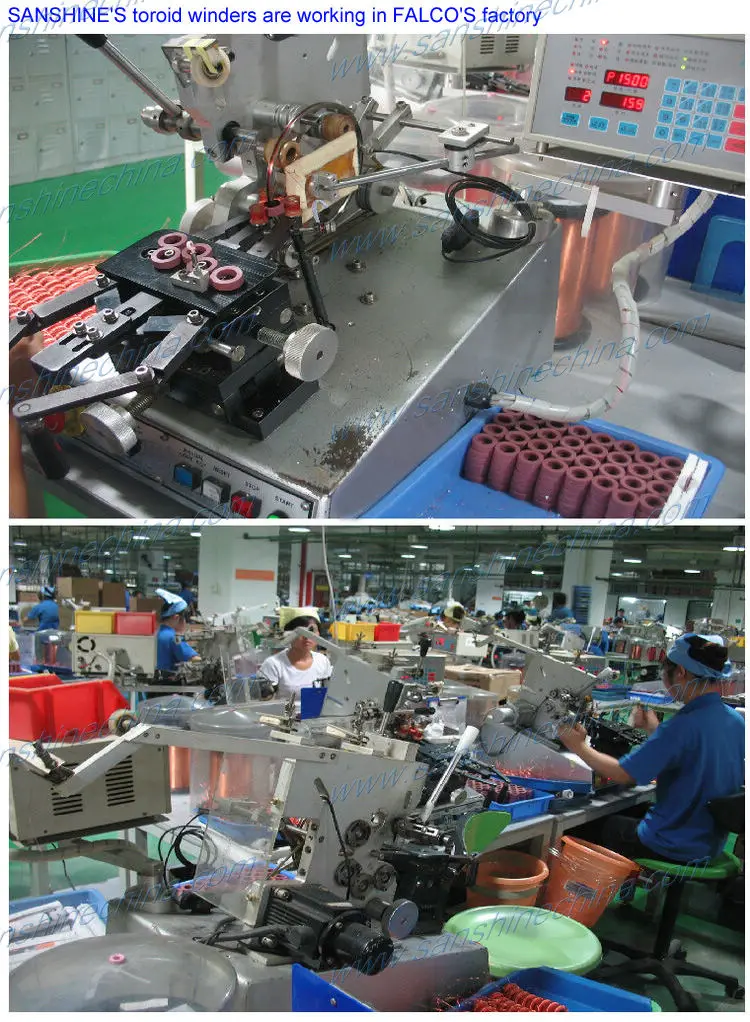

SS900S4 automatic toroid coil winding machines are working in user's factory
Description of SS900S4  fine wire small toroid coil winding machine  :

The SS900S4  fine wire small toroid coil winding machine  adopts CNC toroid controller,it is one slider
shuttle type.It's an accurately and reliability digital toroid-winding machine. is used for toroidal inductor, toroidal
transformer,toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics,UPS inductor,  converter inductors, watter metter sensors, toroid current transformer of electronic watt-hour meter, etc.

Features of SS900S4  fine wire small toroid coil winding machine :

1. Collocate the slider type winding head to reduce the cost.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count wire length of loading by wire lenght sensor which be integrated in the motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification of SS900S4  fine wire small toroid coil winding machine  :

Copper wire diameter: 0.05~0.3mm

Min. Finished ID: 4.5mm (will be different by shuttle size and coil height. )

Finished OD range: 5~60mm

Max. Speed: 1800rpm
Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V/110V +10%, 50/60 Hz

Dimension: L60x36x64(cm)

Net weight: 40kgs
ModelUniversally matched shuttle modelCopper wire diameter range(mm)Min. inside diameter of finished coil (mm)Out side diameter of finished coil range (mm)Height of finished coil range (mm)

1.6   1.8   2.0


0.07 ~0.252.55 ~ 163 ~8


1.8   2.0   2.5


0.07 ~0.252.55 ~163 ~8
SS900B42.5 2.8 3.0 3.5 or customized0.15 ~0.835 ~603 ~25
SS900S42.6 3.0 3.5 or customized0.05 ~0.34.55 ~603 ~25
SS900B63.5 5.0 6.3 or customized0.3 ~1.2610 ~805 ~45
SS900S63.5 5.0 6.3 or customized0.08 ~0.35710 ~805 ~45
SS900B88 10 12 15 or customized0.35 ~1.51220 ~1508 ~80
SS900S88 10 12 15 or customized0.3 ~0.61520 ~1508 ~80


How to select the best suited automatic toroid coil winding machine for your toroid coil,

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?

2, toroid core inside diameter before winding?

3, toroid core height before winding?

4, how many windings on this core?

5, how many turns of each winding?

6, how about the copper wire diameter of each winding?

7, provide pictures of product which is better.


Our Services


Service tenet

Provide you the best service with “fast + satisfactory + safe”.

Warranty period

12 months long after the user received the product.

Warranty items

Only for abnormal breakdown caused by the machine design or manufacture defect,

free repair and accessory will be provided.

Technology service ability

All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.

Guide the user to use accurately and how to maintain the product.

Provide free consultation about production process technology of electronic products.

Service after sell

In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.

Use instruction

Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.

Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.

Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should

be taken care. All done help to extend the use period.

User document management

Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.

About product

1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.

2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.

3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.


Packaging & Shipping


Package and transport

General package(Paper carton or plastic bag):  For small goods, Package it with form and pack paper to guarantee unbroken during the transport.

Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
