Strong wire and very heavy toroidal core winding machine

FOB Reference Price:Get Latest Price
US $1-1.01 / Set | 1 Set/Sets Strong wire and very heavy toroidal core winding machine (Min. Order)
Supply Ability:
6000 Set/Sets per Year Strong wire and very heavy toroidal core winding machine
Port:
XIAMEN port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SanShine
Model Number:
SS1000
Voltage:
AC220V
Power(W):
see the details
Weight:
240KG
Dimension(L*W*H):
L900*W600*H1350mm
Certification:
Inner
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Wire diameter:
1.0 -4.0mm
Max. final coil O. D.:
130 -650mm
Min. final coil I. D.:
60mm
Max. final coil height:
150mm
how to make super big toroid core coil:
use SS1000 Strong wire and very heavy toroidal core winding machine
how to make thick wire toroid coil:
use SS1000 Strong wire and very heavy toroidal core winding machine
how to make big toroid common mode choke:
use SS1000 Strong wire and very heavy toroidal core winding machine
how do super big toroid current sensor:
use SS1000 Strong wire and very heavy toroidal core winding machine
make power factor corrector toroid coil:
use SS1000 Strong wire and very heavy toroidal core winding machine
how to make big power toroid filter:
use SS1000 Strong wire and very heavy toroidal core winding machine
Packaging & Delivery
Packaging Details
customs approved wood box for Strong wire and very heavy toroidal core winding machine
Delivery Time
about 7 working days
SS1000  Strong wire and very heavy toroidal core winding machine

Product Description



SS1000  Strong wire and very heavy toroidal core winding machine

Description of Strong wire and very heavy toroidal core winding machine  :
SS1000 Strong wire and very heavy toroidal core winding machine   adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid choke coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc.

Features of  SS1000  Strong wire and very heavy toroidal core winding machine
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS1000 gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.

Specification of SS1000  Strong wire and very heavy toroidal core winding machine  :

Wire diameter1.0 -4.0mmMax. winding speed150 RPM
Max. final coil O. D.Φ 130 -650mmWire spacingstepping motor
Min. final coil I. D.Φ 60mmSupply voltageAC220V,50Hz single phase
Max. final coil height150mmMechanical dimensions900*600*1350mm
Controller storage capacity programs29(sets)Weight240kg



How to select the best suited Strong wire and very heavy toroidal core winding machine  for your toroid coil ?

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?

2, toroid core inside diameter before winding?

3, toroid core height before winding?

4, how many windings on this core?

5, how many turns of each winding?

6, how about the copper wire diameter of each winding?

7, provide pictures of product which is more better.

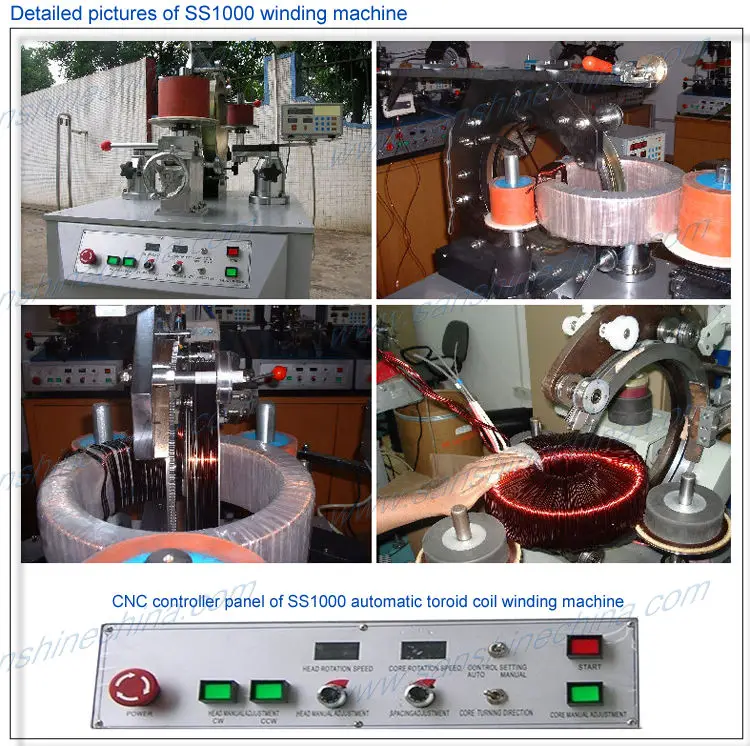

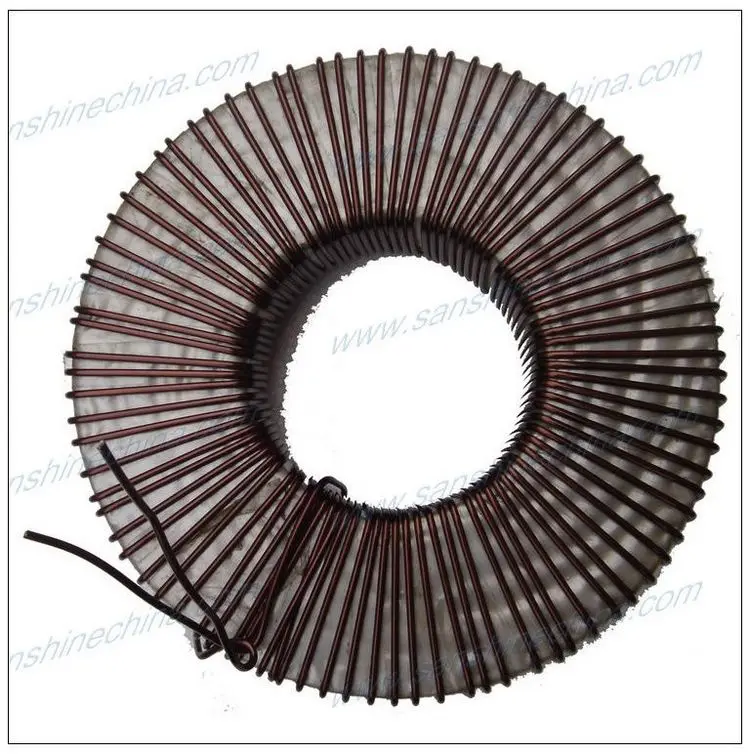

Pictures of  SS1000  Strong wire and very heavy toroidal core winding machine














Our Services





Service tenet

Provide you the best service with “fast + satisfactory + safe”.

Warranty period

12 months long after the user received the product.

Warranty items

Only for abnormal breakdown caused by the machine design or manufacture defect,

free repair and accessory will be provided.

Technology service ability

All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.

Guide the user to use accurately and how to maintain the product.

Provide free consultation about production process technology of electronic products.

Service after sell

In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.

Use instruction

Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.

Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.

Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should

be taken care. All done help to extend the use period.

User document management

Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.
