Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine

FOB Reference Price:Get Latest Price
US $1-1.01 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SS851A
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SANSHINE
Condition:
New
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Customized:
customized by requested
Wire size:
0.05~5.0mm
Voltage:
AC220V/110V + 10%, 50/60 Hz
Spindle No.:
1
Spread pitch:
0.001~9.999mm
How to wind thick wire big coil:
long length wire spread heavy wire UPS coil winding machine
Supply Ability
Supply Ability:
8000 Set/Sets per Year long length wire spread heavy wire UPS coil winding machine
Packaging & Delivery
Packaging Details
customs approved wood box for Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine
Port
XIAMEN port
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 7 To be negotiated
Video Description



SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine


Product Description

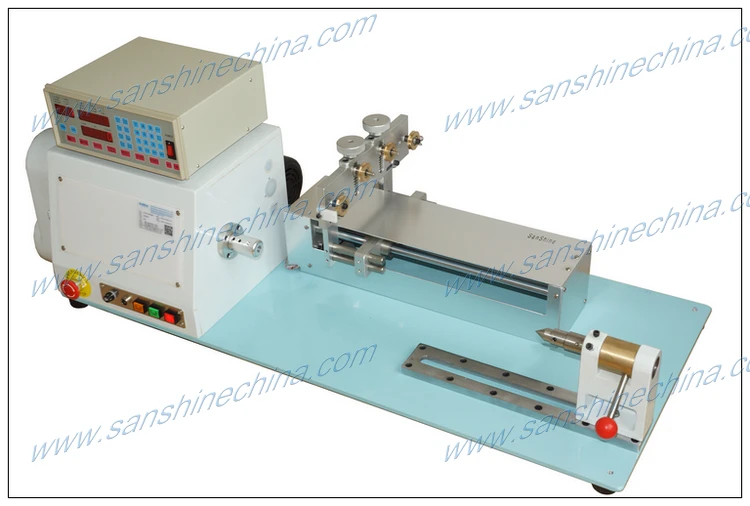

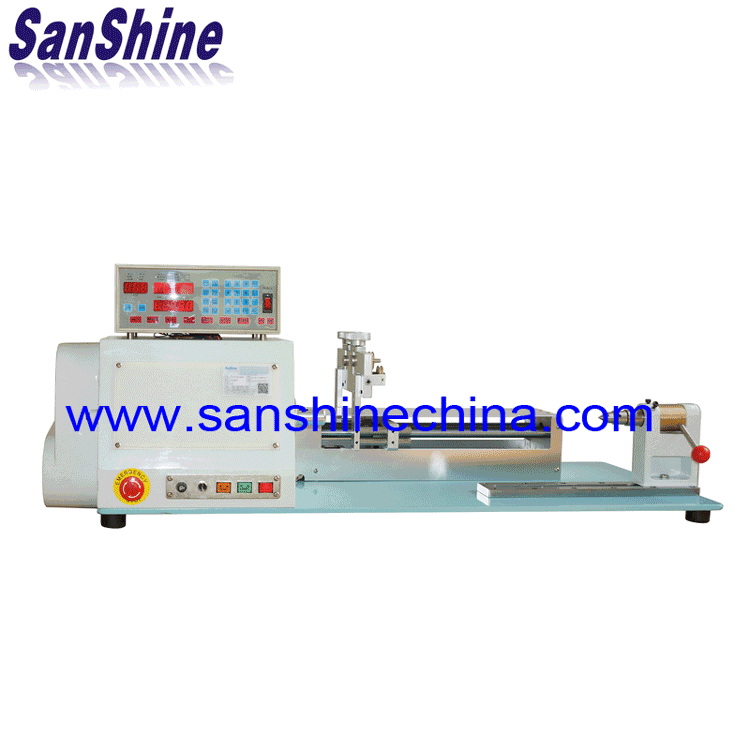

SS851A Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine

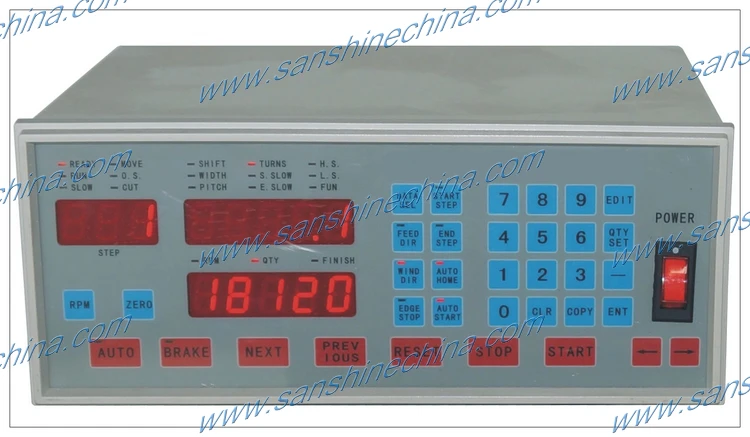

CNC controller panel of SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine

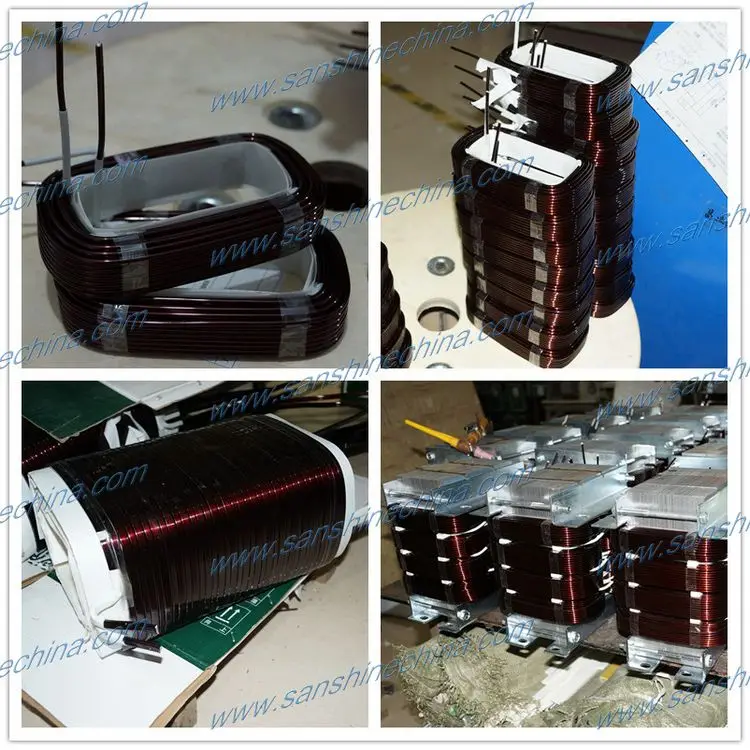

Finished products after SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine





Packing





Description of  SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine :

SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine  is digital Programmable coil winding machine with 1/2HP DC motor. The Maximum wire size can reach 5.0mm. It's the best choice for Secondary winding, reactive coil, electric power transformer and for big coil of thick wire .

This series machine can be customized by requested.

Feature of  SS851A Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine :



1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, , high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Multiple spindles winding synchronal for highest efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.



Specification of  SS851A  Single spindle CNC precision automatic high torsion long length wire spread heavy wire UPS coil winding machine  :



ModelSS-851SS-852SS-851A
Spindle No. 1 2 1
Wire size0.05~5.0mm0.05~1.6mm0.05~5.0mm
Spread pitch0~9.999mm0.001~9.999mm
Spread width230mm230mmMax.700mm
Coil diameter200mm110mmMax.200mm
Main motor                 500W DC Motor
Spread motor             4-Phase Stepper Motor
Max. speed2500 rpm2500 rpm 2500 rpm
Memory            999 Steps
Power source AC220V/110V + 10%, 50/60 Hz
Dimension(cm)70x52x6070x52x60120x52x70
Net weight42kgs44kgs55kgs






Our Services





Service tenet

Provide you the best service with “fast + satisfactory + safe”.

Warranty period

12 months long after the user received the product.

Warranty items

Only for abnormal breakdown caused by the machine design or manufacture defect,

free repair and accessory will be provided.

Technology service ability

All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.

Guide the user to use accurately and how to maintain the product.

Provide free consultation about production process technology of electronic products.

Service after sell

In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.

Use instruction

Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.

Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.

Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should

be taken care. All done help to extend the use period.

User document management

Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.

About product

1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.

2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.

3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.




Packaging & Shipping





Package and transport

General package(Paper carton or plastic bag):  For small goods, Package it with form and pack paper to guarantee unbroken during the transport.

Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)

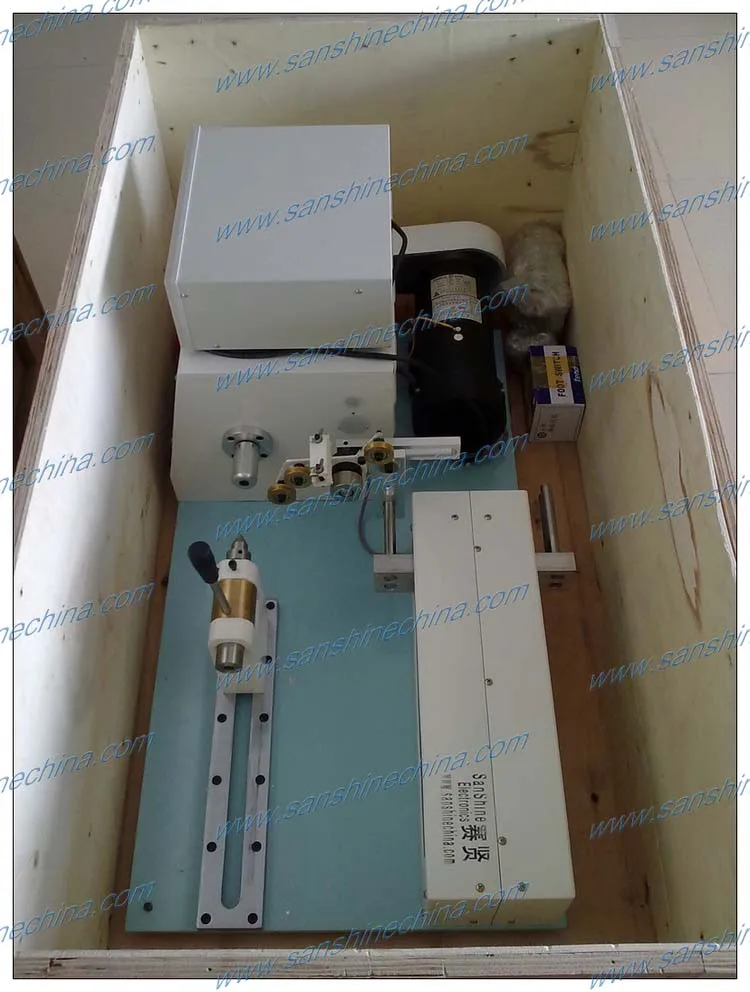

SS851 or SS851A coil winding machine of packing
