Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: SANSHINE
  • Model Number: SS108A
  • Testing accuracy: 0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
  • Testing speed: fast 3 Measurements /s, slow 1.2 Mea. /s
  • Coil outside diameter: < 120mm
  • testing rod diameter: < 110mm
  • coil turns range: 0 ~ 60000T
  • how to test contactor coil turns: use SANSHINE's SS108A Big generator winding turn tester
  • how to measure copper wire spool turns: use SANSHINE's SS108A Big generator winding turn tester
  • how to measure reactor winding turns: use SANSHINE's SS108A Big generator winding turn tester
  • how to count ignition coil turns: use SANSHINE's SS108A Big generator winding turn tester
  • test electromagnetic valve coil turns: use SANSHINE's SS108A Big generator winding turn tester

Packaging & Delivery

Packaging Details carton box, packing size L45*41*H34CM, packing weight 7.5 KG for Big generator winding turn tester
Delivery Time Shipped in 5 days after payment





Description of Big generator winding turn tester:
SS108A series Big generator winding turn tester are used to test various coil of turns. Such as: Generator winding turns, transformer winding turns, mortor winding turns, inductor winding turns, contactor winding turns,relay winding turns, sparking winding turns,ignition winding turns,speaker voice coil,etc..


Feature of Big generator winding turn tester:
1. CPU control and digital display.
2. Operation easy, don't need switch the range, Auto. Testing.
3. Accuracy: 02%.
4. 5 digital counts display.


Specification of Big generator winding turn tester:

ModelSS108A-4SS108A-6SS108A-10SS108A-10SS108A-10SS108A-10SS108A-10SS108A-X
Testing rod size of testing platform(rod diameter*rod height* rode center distance mm)
4*H150*130

6*H150*130

10*H150*130

10*H250*180

10*H350*180

10*H450*180

10*H550*180
speciall testing platform size can be customized.
Coil inside diameter> 4mm> 6mm> 10mm> 10mm> 10mm> 10m> 10mm
Coil outside diameter< 120mm< 170mm
Coil height< 110mm< 210mm< 310mm< 410mm< 510mm
Coil turns range0 ~ 60000T
Testing accuracy0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
Testing speedfast 3 Measurements /s, slow 1.2 Mea. /s
Weightabout 11KG depend on different testing platform
Tester measurement370*220* 110mm

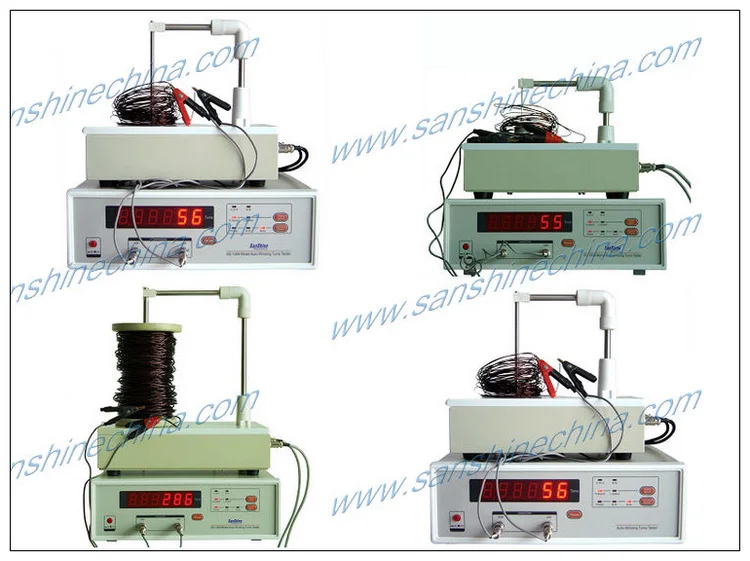

Pictures of Big generator winding turn tester:
