 Multi-winding spindle CNC automatic transformer coil winding machine

Product Description

SS86X Series Multi-winding spindle cnc automatic transformer coil winding machine



Description of Multi-winding spindle cnc automatic transformer coil winding machine:

SS-86X Series Multi-winding spindle cnc automatic transformer coil winding machine are digital programmable High-speed coil winding machine, there are four models: One spindle, two Spindles, three spindles and four spindles. It's the highest efficiency equipment. they are best choice for winding transformer,inductor,relay,ignition,electric valve,etc.


Feature of Multi-winding spindle cnc automatic transformer coil winding machine:
1. Microprocessor design, easy for program-setting.
2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire spreading by nozzle type spreading head.
5. Wire passing through ceramic rollers prevent enamel from high temperature.
6. Multiple spindles winding synchronal for highest efficiency.
7. Foot-switch connection for better efficiency.
8. Winding parameters and options can be set independently for each step.
9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

10. 3 types wire tensioner ( type A for wire diameter 0.02~0.25mm,  type B for wire diameter 0.06~0.5mm,  type C for wire diameter 0.3~0.8mm )


Specification of Multi-winding spindle CNC automatic transformer coil winding machine:

Model

SS-861

SS-862

SS-863

SS-864

Spindles

1

2

3

4

Wire size

0.03~0.6mm(Depends on Tension & Nozzle)

Spread pitch

0~9.999mm

Spread width

100mm(Max.)

Coil diameter

100mm(Max.)

Main motor

Brushless Motor

Spread motor

Stepping motor

Max. speed

6000rpm

Memory

999 Sequences

Power source

AC220V +10%, 50/60 Hz

Dimension (CM)

45x67x100

50x67x100

75x67x100

100x67x100

Net weight(KG)

45

50

55

60

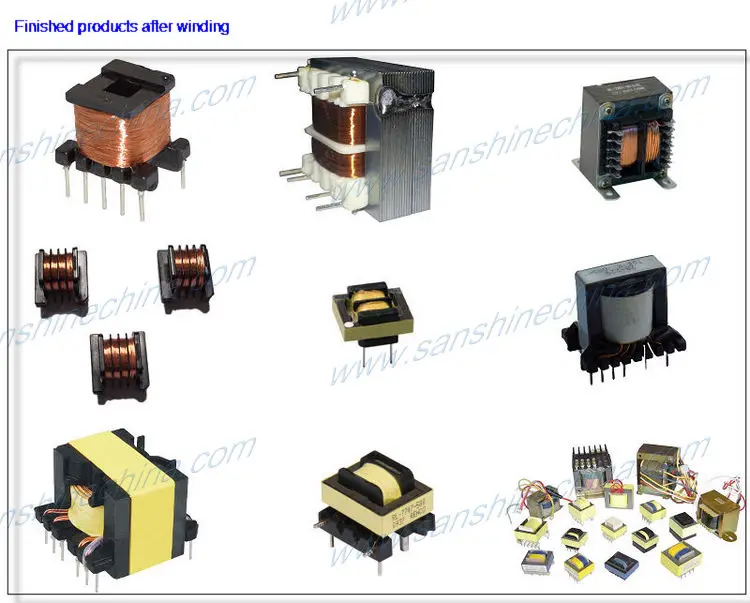

 Pictures of Multi-winding spindle CNC automatic transformer coil winding machine
