Flange wire guides pulley (Wire Roller)

FOB Reference Price:Get Latest Price
US $1-1.01 / Pieces | 50 Piece/Pieces (Min. Order)
Model Number:
see the details
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SANSHINE
Use:
Embroidery Machinery
Type:
Guide Wire
material:
Plastic dull+ceramic circle+bearing
how to guide the copper wire:
use SANSHINE's Flange wire guides pulley (Wire Roller) to lead
how to guide the cable:
use SANSHINE's Flange wire guides pulley (Wire Roller) to lead
how to guide the optical fiber:
use SANSHINE's Flange wire guides pulley (Wire Roller) to lead
how to guide the isulation film wire:
use SANSHINE's Flange wire guides pulley (Wire Roller) to lead
how to protect insulation film of wire:
use SANSHINE's Flange wire guides pulley (Wire Roller) to guide
how to protect enamel wire:
use SANSHINE's Flange wire guides pulley (Wire Roller) to lead
wire guides of winding machine:
use SANSHINE's Flange wire guides pulley (Wire Roller) to do
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Flange wire guides pulley (Wire Roller)
Packaging & Delivery
Packaging Details
good packing in the cartons for Flange wire guides pulley (Wire Roller)
Port
XIAMEN PORT
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 5 To be negotiated

Flange wire guides pulley (Wire Roller)





Product Description





Description of flange wire guides pulley (Wire Roller) :

The wire roller (NC series) is used in the coil winding machines to guide the wire, the textile machinery as well. Two nylon sidewalls have been put to the both side of the ceramic ring and the bearing, it combines one wire roller. porcelain ring is trapped out of the bearing, it will rotate by the thread and wire passing on the surface of the ring. be a partial sliding friction. Thus the sliding friction has been converted to the static friction. But at the start and stop, in order to overcome the inertia, there will be a partial sliding friction. The difference between the usage of wire roller and ceramic ring is: there is a sliding friction between thread, wire and the surface of the ceramic ring, so it is applied for the smaller angle of the wire, lower pressure and other such kind of less demanding occasions. The wire roller is mainly used of static friction (part sliding friction); it is applied for the bigger angle of the wire, a certain pressure and other such kind of higher occasions. protect the insulation film and guide wire, stabilized the tension also.



Features of flange wire guides pulley (Wire Roller) :

1.The surface polish degree of the porcelain ring : Ra0.2.

2.The sliding distance between enameled wire and the roller :0.15mm

3.The hardness : HRa88.



Specification of flange wire guides pulley (Wire Roller) :



No.

A(mm)

B(mm)

C(mm)

D(mm)

H(mm)

NC001

20

15

3

2

5

NC002

29/30

20

4/5

3/4

6.4/8

NC003

30

15

3

2

10

NC004

40

20

4/5

3

15

NC005

45

30

5/6

4

10

NC006

60

40

8/10

6

13

NC007

60

40

6/8

7

18

NC008

79

50

10

8

15

NC009

80

40

8

7

25

NC010

100

50

10

8

30

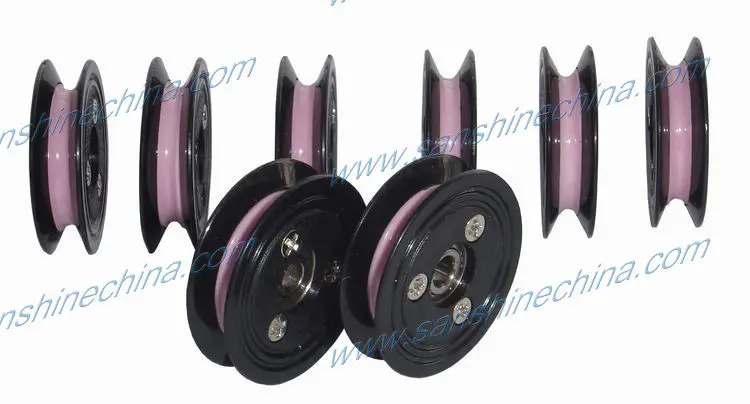

Pictures of Flange wire guides pulley (Wire Roller)

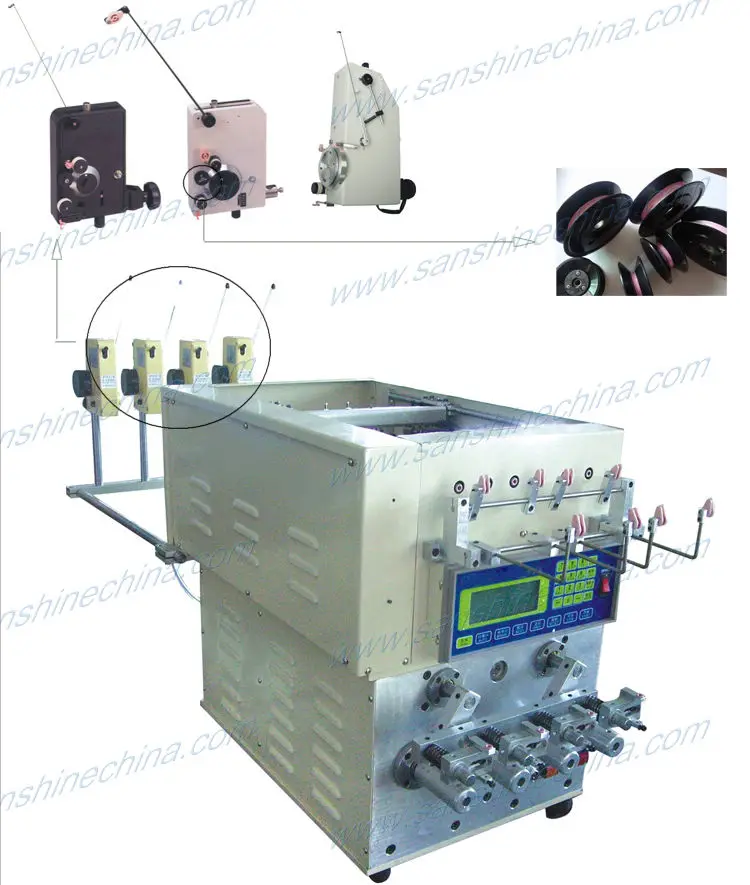

The flange wire guides pulley (Wire Roller) using on the wire tensioner :
