Automatic toroidal inductor coil winding machine(SS900B6 series final coil OD 10~80mm) replace GORMAN toroidal winder

FOB Reference Price:Get Latest Price
$1.00 - $1.01 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Coil Type:
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Place of Origin:
Fujian, China (Mainland)
Brand Name:
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
1 Year
CNC or Not:
Weight (KG):
Wire Diameter Range (mm):
0.3 ~1.2mm
Universally matched shuttle model:
3.5 5.0 6.3 or customized
Copper wire diameter range:
0.3 ~1.2mm
Min. inside diameter of finished coil:
Out side diameter of finished coil:
10 ~80mm
Height of finished coil range:
5 ~45mm
Max. Speed:
Memory capacity:
999 steps
Power source:
AC220V /110V +10%, 50/60 Hz
Net weight:
Supply Ability
Supply Ability:
8000 Set/Sets per Year
Packaging & Delivery
Packaging Details
customs approved wood box
Picture Example:
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description


Description of automatic toroidal winding machine(SS900B6 series):

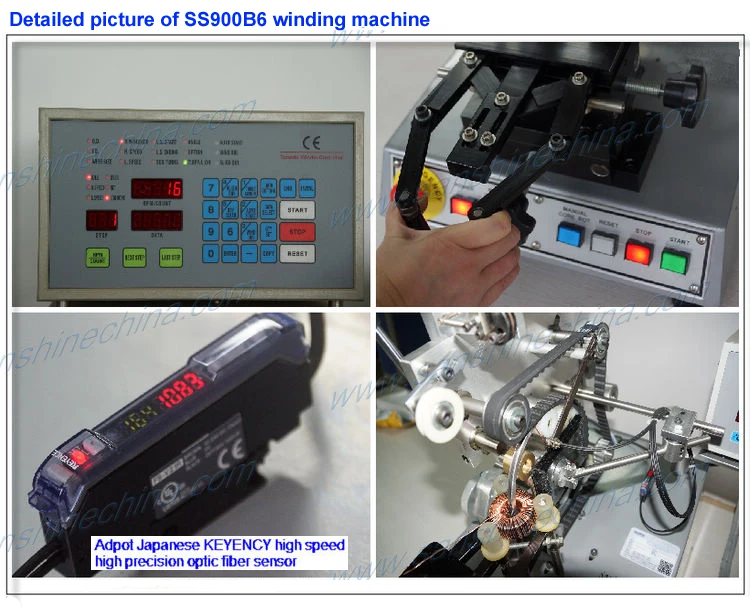

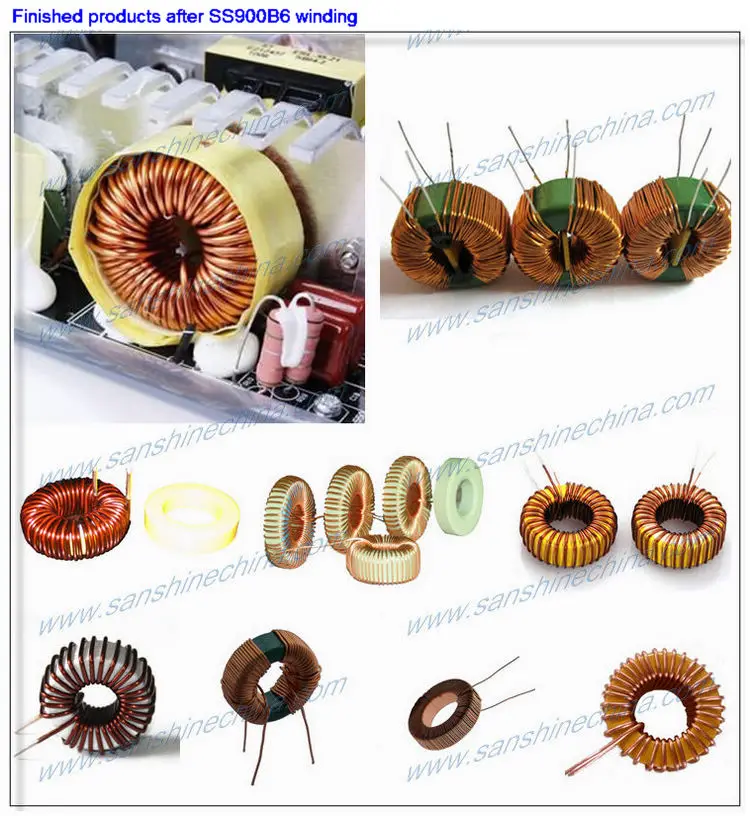

Coil winding sample of SS900B6 automatic toroid coil winding machine

The SS900B6 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,toroid chock coil, power inductors, power magnetics, UPS inductor,  converter inductors, watter metter sensors,toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.

Features of automatic toroidal winding machine(SS900B6 series):

1. Collocate belt type winding head, interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, so that to reduce the cost.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification of automatic toroidal winding machine(SS900B6 series):

Copper wire diameter: 0.3~1.2mm

Min. Finished ID: 6mm (will be different by shuttle size and coil height. )

Finished OD range: 10~80mm

Max. Speed: 1200rpm
Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x60(cm)

Net weight: 40Kgs
ModelUniversally matched shuttle modelCopper wire diameter range(mm)Min. inside diameter of finished coil (mm)Out side diameter of finished coil range (mm)Height of finished coil range (mm)

1.6   1.8   2.0


0.07 ~0.252.55 ~ 163 ~8


1.8   2.0   2.5


0.07 ~0.252.55 ~163 ~8
SS900B42.5 2.8 3.0 3.5 or customized0.15 ~0.835 ~603 ~25
SS900S42.6 3.0 3.5 or customized0.05 ~0.34.55 ~603 ~25
SS900B63.5 5.0 6.3 or customized0.3 ~1.2610 ~805 ~45
SS900S63.5 5.0 6.3 or customized0.08 ~0.35710 ~805 ~45
SS900B88 10 12 15 or customized0.35 ~1.51220 ~1508 ~80
SS900S88 10 12 15 or customized0.3 ~0.61520 ~1508 ~80


How to select the best suited automatic toroid coil winding machine for your toroid coil,

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?

2, toroid core inside diameter before winding?

3, toroid core height before winding?

4, how many windings on this core?

5, how many turns of each winding?

6, how about the copper wire diameter of each winding?

7, provide pictures of products to us which is better.
