automatic power factor corrector toroid coil winding machine(SS900B8 series final OD 20~150mm) replace RUFF toroidal winder

FOB Reference Price:Get Latest Price
US $1-1.01 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SS900B8
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SanShine
Voltage:
AC220V or 110V
Power(W):
450W
Weight:
48KG
Dimension(L*W*H):
packing size L1040*W690*H880mm
Certification:
Inner
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Universally matched shuttle model:
8 10 12 15 or customized
Copper wire diameter:
0.35 ~1.5mm
Min. Finished ID:
12mm
Finished OD range:
20~150mm
Height of finished coil range:
8~80mm
Max. Speed:
1200rpm
Memory capacity:
999 steps
Power source:
AC220V /110V +10%, 50/60 Hz
Dimension:
L60*36*70(cm)
Net weight:
47Kgs
Supply Ability
Supply Ability:
8000 Set/Sets per Year
Packaging & Delivery
Packaging Details
customs approved wood box
Port
XIAMEN port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 5 To be negotiated
Video Description

Product Description



Description of SS900B8 automatic toroid coil winding machine :

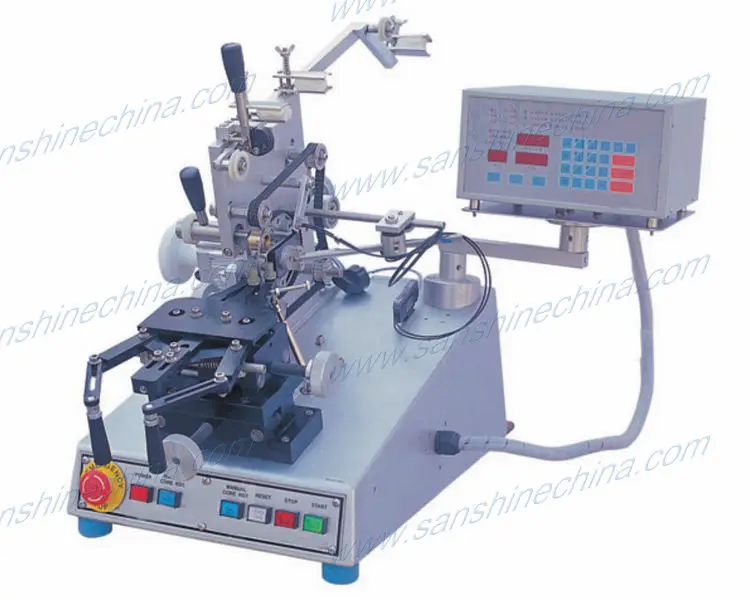

winder SS900B8-14 DSC02434winder SS900B8-14 DSC02430winder SS900B8-14 DSC02431SS900b8 2.jpg


Coil winding example of SS900B8 automatic toroid coil winding machine

SS900b8 3.jpg

The SS900B8 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.

belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.

is used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,

toroid chock coil, power inductors, power magnetics, UPS inductor,  converter inductors, watter metter sensors,

toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.

Features of SS900B8 automatic toroid coil winding machine :

1. Collocate belt type winding head, and interchangeable roller table with different size shuttle(magazine) for different toroid coil dimensions, different wire sizes,  so that to reduce the cost.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification of SS900B8 automatic toroid coil winding machine :

Copper wire diameter: 0.35~1.5mm

Min. Finished ID: 12mm (will be different by shuttle size and coil height. )

Finished OD range: 20~150mm

Max. Speed: 1200rpm

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x70(cm)

Net weight: 47kgs

ModelUniversally matched shuttle modelCopper wire diameter range(mm)Min. inside diameter of finished coil (mm)Out side diameter of finished coil range (mm)Height of finished coil range (mm)
SS900B2

1.6   1.8   2.0



0.07 ~0.252.55 ~ 163 ~8

SS900B3

1.8   2.0   2.5



0.07 ~0.252.55 ~163 ~8
SS900B42.5 2.8 3.0 3.5 or customized0.15 ~0.835 ~603 ~25
SS900S42.6 3.0 3.5 or customized0.05 ~0.34.55 ~603 ~25
SS900B63.5 5.0 6.3 or customized0.3 ~1.2610 ~805 ~45
SS900S63.5 5.0 6.3 or customized0.08 ~0.35710 ~805 ~45
SS900B88 10 12 15 or customized0.35 ~1.51220 ~1508 ~80
SS900S88 10 12 15 or customized0.3 ~0.61520 ~1508 ~80



How to select the best suited automatic toroid coil winding machine for your toroid coil,

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.






Our Services





Service tenet

Provide you the best service with “fast + satisfactory + safe”.

Warranty period

12 months long after the user received the product.

Warranty items

Only for abnormal breakdown caused by the machine design or manufacture defect,

free repair and accessory will be provided.

Technology service ability

All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.

Guide the user to use accurately and how to maintain the product.

Provide free consultation about production process technology of electronic products.

Service after sell

In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.

Use instruction

Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.

Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.

Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should

be taken care. All done help to extend the use period.

User document management

Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.
