Product Description



SS300 series gear type automatic big heavy toroid coil winding machine
Description:
SS-300 Series gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire,  converter inductors with thick wire,  heavy toroidal core with heavy wire coils,etc.

SS300 series gear type automatic big heavy toroid coil winding machine
Features
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300 Series gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.

SS300 series gear type automatic big heavy toroid coil winding machine
Each model of specification :

Model
SS-300-01
Wire diameter0.7 -2.0mmMax. winding speed200 rpm
Max. final coil O. D.Φ 60 -200mmWire spacingstepping motor control
Min. final coil I. D.Φ 40mmSupply voltageAC 220V(50hz)
Max. final coil height100mmMechanical dimensions550*500*780
Controller storage capacity programs29(set)Weight94kg
Model
SS-300-02
Wire diameter0.7 -2.5mmMax. winding speed200 rpm
Max. final coil O. D.Φ 60 -200mmWire spacingstepping motor control
Min. final coil I. D.Φ 40mmSupply voltageAC 220V(50hz)
Max. final coil height100mmMechanical dimensions550*500*780
Controller storage capacity programs29(set)Weight94kg
Model
SS-300-03
Wire diameter0.6 -1.6mmMax. winding speed200 rpm
Max. final coil O. D.Φ 60 -200mmWire spacingstepping motor control
Min. final coil I. D.Φ 30mmSupply voltageAC 220V(50hz)
Max. final coil height80mmMechanical dimensions550*500*780
Controller storage capacity programs29(set)Weight94kg
Model
SS-300-04
Wire diameter0.5 -1.3mmMax. winding speed200 rpm
Max. final coil O. D.Φ 60 -200mmWire spacingstepping motor control
Min. final coil I. D.Φ 25mmSupply voltageAC 220V(50hz)
Max. final coil height80mmMechanical dimensions550*500*780
Controller storage capacity programs29(set)Weight94kg



How to select the best suited automatic toroid coil winding machine for your toroid coil,

Tell us your toroidal coil of data as below please:

1, toroid core outside diameter before winding?

2, toroid core inside diameter before winding?

3, toroid core height before winding?

4, how many windings on this core?

5, how many turns of each winding?

6, how about the copper wire diameter of each winding?

7, provide pictures of product which is better.

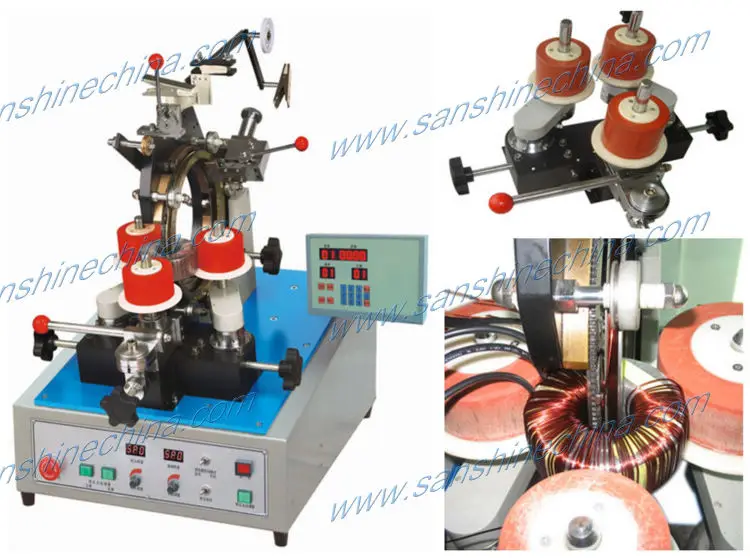

Picture of of SS300 series automatic big toroid coil winding machine:



 Coil winding example of SS300 series automatic big toroid coil winding machine
